Lincoln Mark 8 Fan Upgrade
97/98 Mark 8s had the most powerful single fan Ford ever made moving some 4500 CFM. A great upgrade if your cooling is needing a boost. Although in 2010 Ford finally made a more powerful factory fan for the F150s but it’s so thick there’s no way you could possible put it in the Mustangs.

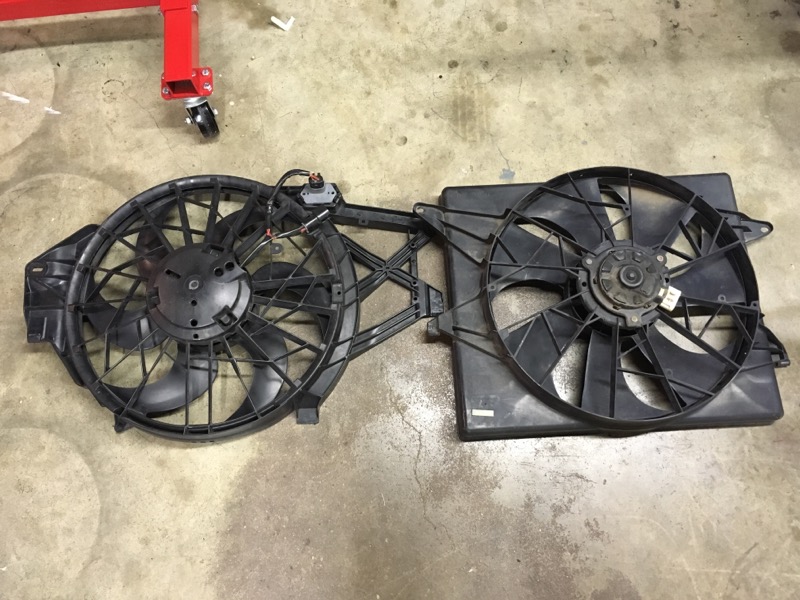

On the left is the stock 03/04 Cobra fan. On the right is the Mark 8 fan. Notice it has a shroud too which helps even more with cooling.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25442831_10155791959839003_8896227314762635414_n.jpg?oh=28065b79286a5c10cfc875aaa4414f1c&oe=5AB77EB9)
![](/images/mds_articles/mark8fan/fan1.jpg)

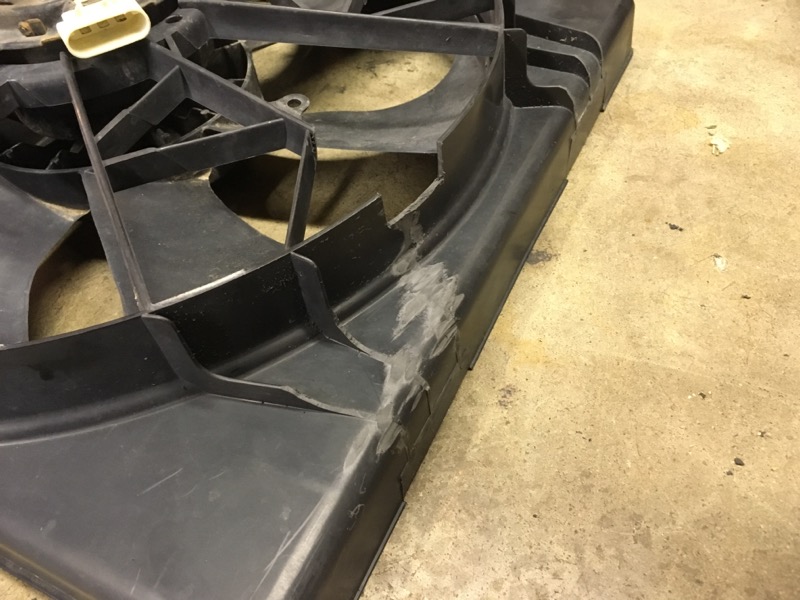

You’ll have to take a notch out of the Mark 8 fan just like this picture to clear the ABS unit.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25445986_10155791962074003_5071755866512637675_n.jpg?oh=c832a0faf2712de875be1e8219027b79&oe=5AD1BF96)
![](/images/mds_articles/mark8fan/fan3.jpg)

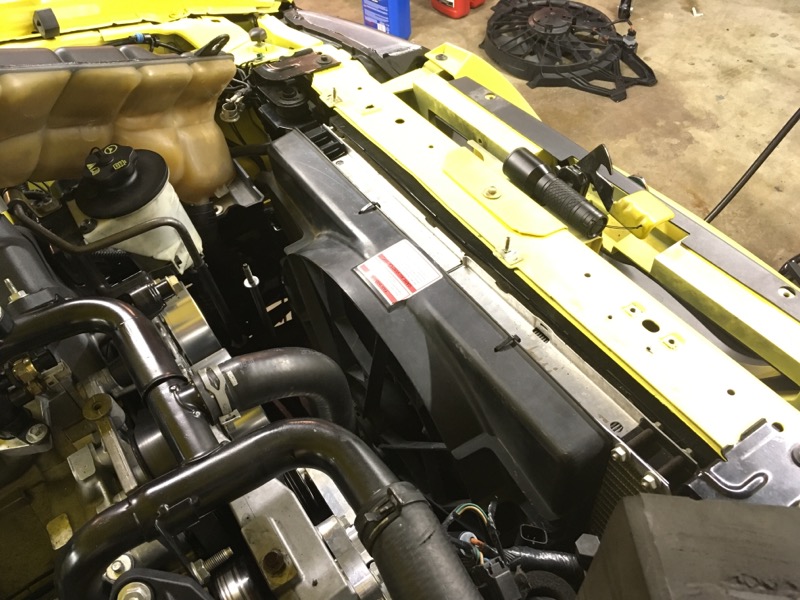

The Mark 8 fan fits perfectly. Almost like it was made for the Cobra. If you have a stock intercooler reservoir tank you’re all set. If you have a larger oversized aftermarket one like I was running at the time it’ll need some notching.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25398798_10155791962749003_457731442950470821_n.jpg?oh=92888dd7b5431b96410deb4ee3a6c6c1&oe=5ACE7C44)
![](/images/mds_articles/mark8fan/fan4.jpg)

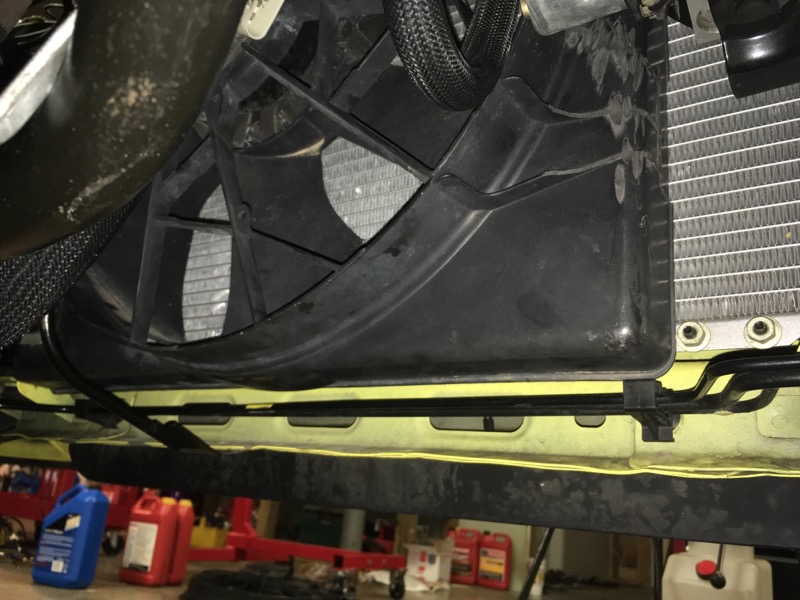

Here you can see how well it fits at the bottom too.
![](/images/mds_articles/mark8fan/fan5.jpg)
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25443236_10155791964669003_3916465615602693378_n.jpg?oh=5c61d0c0939162c677503e7813ab4475&oe=5AC1927B)

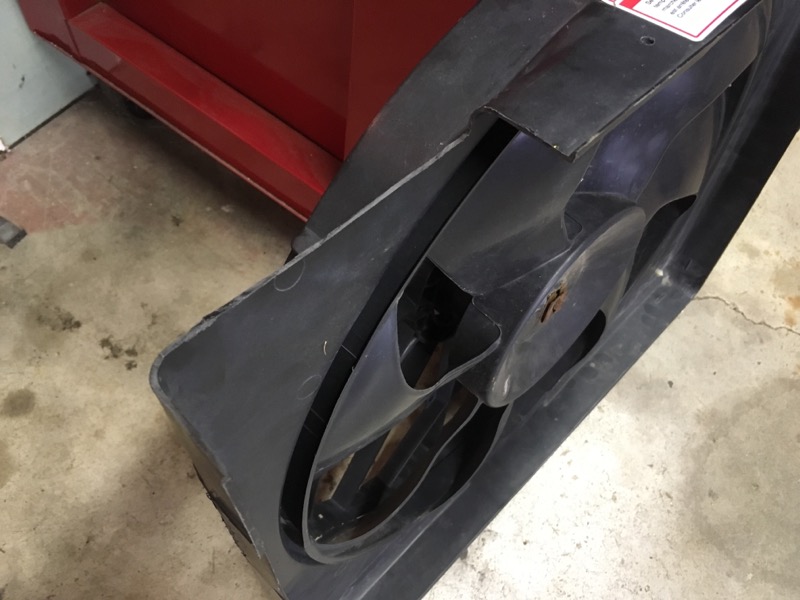

Here’s the notch I made at the top passenger’s side for the oversized intercooler tank I mentioned earlier.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25550085_10155791966199003_169769970347553256_n.jpg?oh=39adb07953d744fe3b52f004ade32dd4&oe=5AB2EEB2)
![](/images/mds_articles/mark8fan/fan6.jpg)

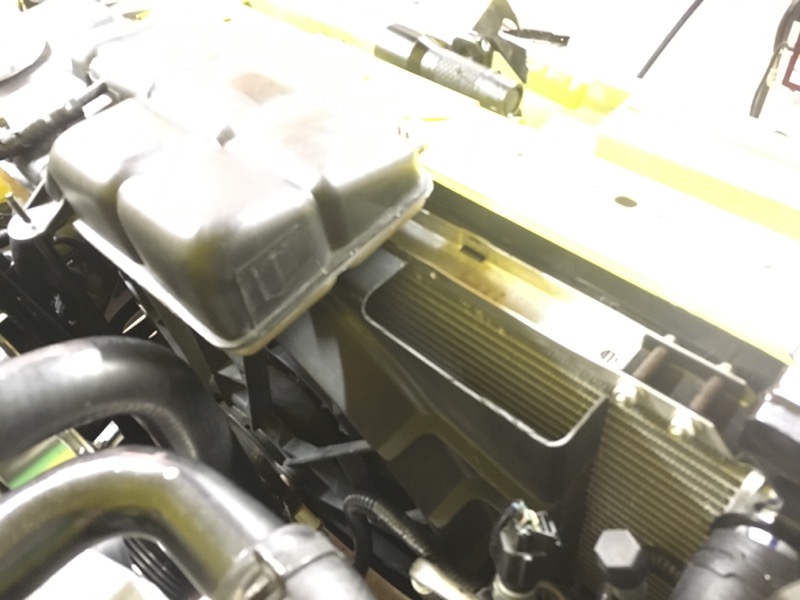

Here the fan is back in place and the OEM radiator reservoir is back in place. You can see the notch for the intercooler reservoir.
![](/images/mds_articles/mark8fan/fan7.jpg)

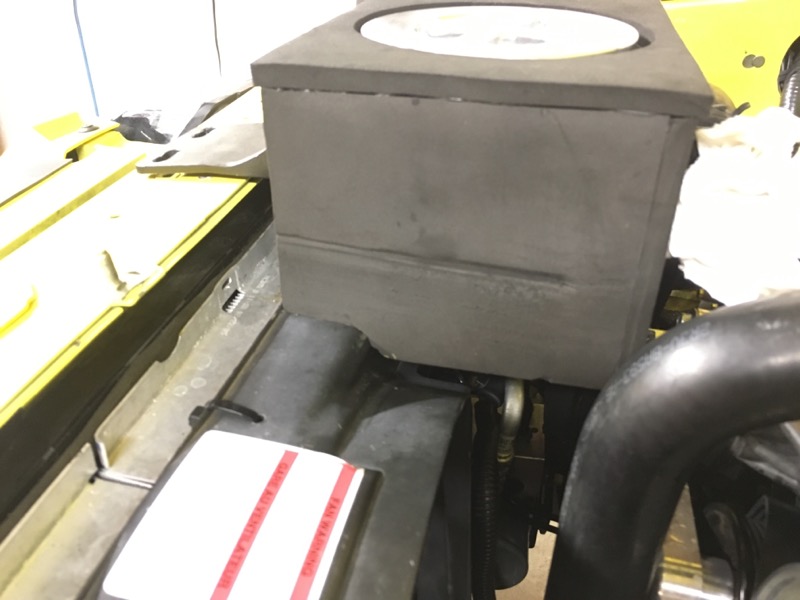

The intercooler reservoir in place closing up the gap of that notch I made.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25498475_10155791974539003_5657987046074002143_n.jpg?oh=220b31c957d27b3b9c35f6ed493361b1&oe=5AB8668E)
![](/images/mds_articles/mark8fan/fan8.jpg)

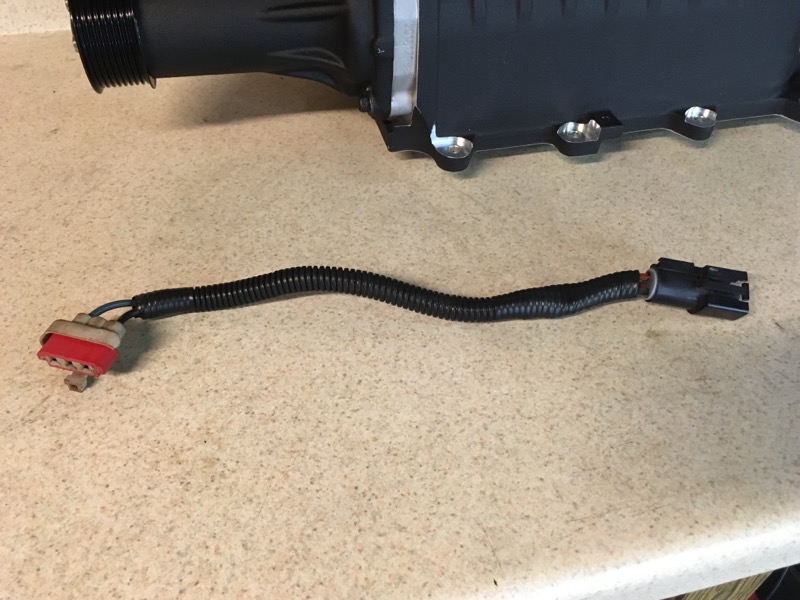

Here’s a simple jumper harness I made to plug the Mark 8 fan directly into my Cobra’s harness like it was made for it. When you grab a Mark 8 fan from the junk yard be sure and grab the wiring pigtail with connector as well if you want to build one yourself.
![](https://scontent-dft4-1.xx.fbcdn.net/v/t1.0-9/25445985_10155791971714003_146365220550570405_n.jpg?oh=61838defd6607dfc2c6e1b436f4edc79&oe=5AD3DB68)
![](/images/mds_articles/mark8fan/fan9.jpg)

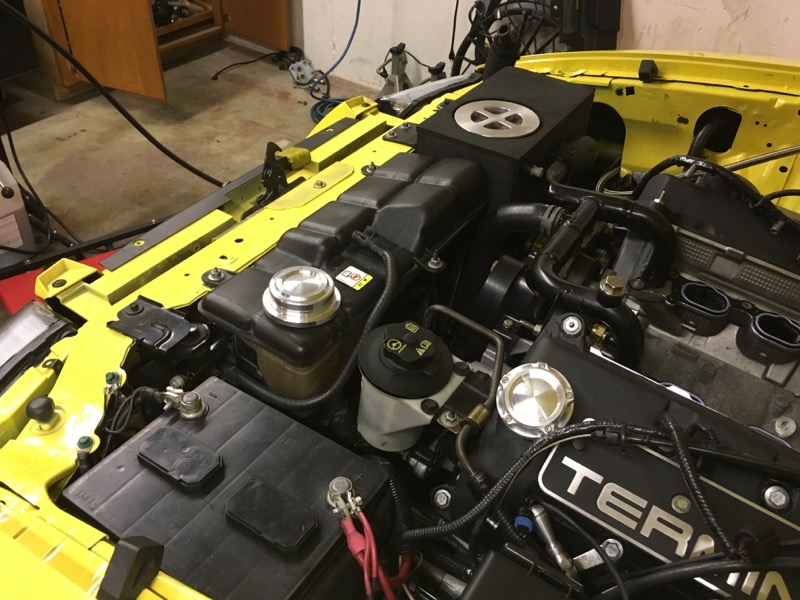

Once it’s all back in you can’t even tell except the fan moves a tremendous amount of air and cools the motor down very noticeably quicker than the stock fan can.
